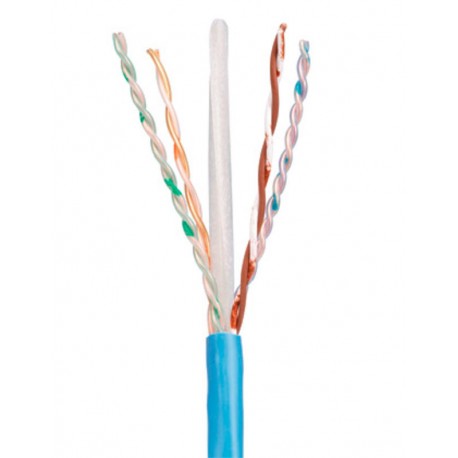

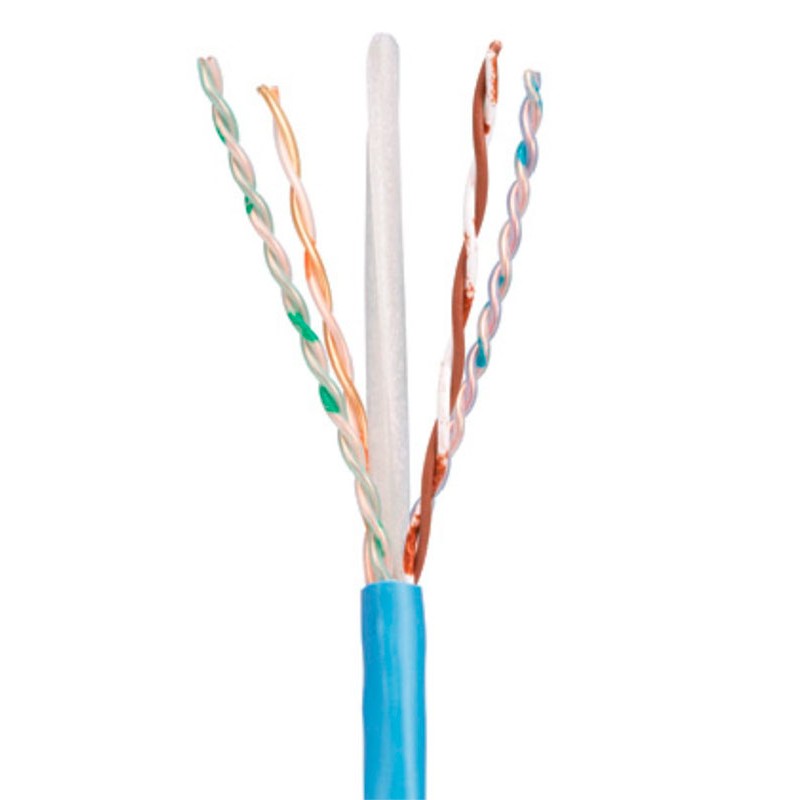

Cable UTP 6A Panduit Netkey 23 AWG 4 pares Categoría 6A LSZH-3 305 metros (PFZ6X04WH-CEG)

Cable diameter:

7.4mm (0.290 in.) nominal

Conductors/insulators:

 23 AWG solid copper insulated with HDPE (LSZH)

Flame rating:

 HDPE (LSZH-1): IEC 60332-1, 60754-2, 61034-2,

EN 50575:

Euroclass Dca - s2, d2, a1

PoE compliant:

Meets IEEE 802.3af and IEEE 802.3at for PoE applications

Segregation

classification:

 Meets EN 50174-2:2009 segregation classification C

Certification:

 ANATEL 2511-12-6246

Installation tension:

25 lbf (110 N) maximum

Temperature rating:

 0°C to 60°C (32°F to 140°F) during installation

-20°C to 75°C (-4°F to 167°F) during operation

Cable jacket:

HDPE (LSZH): Low smoke flame retardant PVC

Cable weight:

18.5 kg/305m (40.8 lbs./1000 ft.)

Packaging:

1000 ft. (305m) on a reel

20.2 kg/305m (46.8 lbs./1000 ft.)

Package tested to ISTA procedure 1A

GARANTIA : 12 MESES
